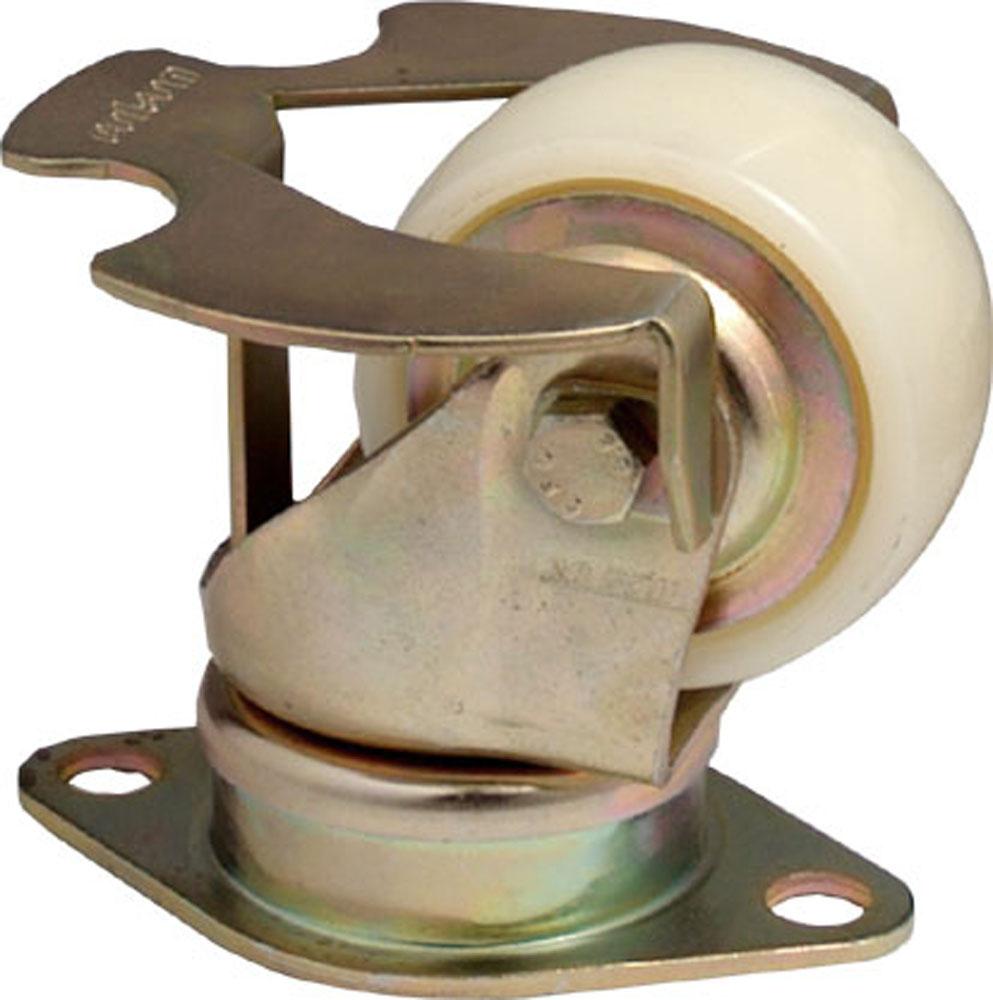

Swivel, 58 mm - 70 mm, 250 kg
Nr produktu: JBPN 070-CC1/AT12,7
Dane techniczne
| Į kółka | 70 mm |
| Szerokość koła | 35 mm |
| Hub length | 45 mm |
| Wysokość montażowa | 102 mm |
| Wysunięcie | 25 mm |
| ć płyty | 111 x 70 mm |
| Į otworu na śrubę | 12 mm |
| Odległość pomiędzy otworami na śruby (SE) | 89 mm |
| Brake swivel radius | 60 mm |
| Nośność | 250 kg |
| Weight | 0.94 kg |
Warianty
| Į kółka | Szerokość koła | Hub length | Wysokość montażowa | Wysunięcie | ć płyty | Į otworu na śrubę | Odległość pomiędzy otworami na śruby (SE) | Brake swivel radius | Nośność | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 58 mm | 35 mm | 45 mm | 96 mm | 25 mm | 111 x 70 mm | 12 mm | 89 mm | 54 mm | 250 kg | 0.87 g | |
| JBPN 058-CC1/A | 58 mm | 35 mm | 45 mm | 96 mm | 25 mm | 111 x 70 mm | 12 mm | 89 mm | 54 mm | 250 kg | 0.73 g |
| JBPN 058-CC1/AT12,7 | 58 mm | 35 mm | 45 mm | 96 mm | 25 mm | 111 x 70 mm | 12 mm | 89 mm | 54 mm | 250 kg | 0.85 g |
| 58 mm | 35 mm | 45 mm | 96 mm | 25 mm | 111 x 80 mm | 9 mm | 85.9 x 60.5 mm | 54 mm | 250 kg | 0.94 g | |
| JBPN 058-CC1/A-R | 58 mm | 35 mm | 45 mm | 96 mm | 25 mm | 111 x 80 mm | 9 mm | 85.9 x 60.5 mm | 54 mm | 250 kg | 0.81 g |
| JBPN 058-CC1/A-RT12,7 | 58 mm | 35 mm | 45 mm | 96 mm | 25 mm | 111 x 80 mm | 9 mm | 85.9 x 60.5 mm | 54 mm | 250 kg | 0.97 g |
| JBPN 070-CC1/A-R | 70 mm | 35 mm | 45 mm | 102 mm | 25 mm | 100 x 80 mm | 9 mm | 85.9 x 60.5 mm | 60 mm | 250 kg | 0.86 g |
| JBPN 070-CC1/A | 70 mm | 35 mm | 45 mm | 102 mm | 25 mm | 111 x 70 mm | 12 mm | 89 mm | 60 mm | 250 kg | 0.78 g |
| JBPN 070-CC1/AT12,7 | 70 mm | 35 mm | 45 mm | 102 mm | 25 mm | 111 x 70 mm | 12 mm | 89 mm | 60 mm | 250 kg | 0.94 g |
| JBPN 070-CC1/AT18,7 | 70 mm | 35 mm | 45 mm | 102 mm | 25 mm | 111 x 70 mm | 12 mm | 89 mm | 60 mm | 250 kg | 0.94 g |
| 70 mm | 35 mm | 45 mm | 102 mm | 25 mm | 111 x 70 mm | 12 mm | 89 mm | 60 mm | 250 kg | 0.93 g | |
| JBPN 070-CC1/A-RT12,7 | 70 mm | 35 mm | 45 mm | 102 mm | 25 mm | 111 x 80 mm | 9 mm | 85.9 x 60.5 mm | 60 mm | 250 kg | 1.03 g |
| JBPN 070-CC1/A-RT18,7 | 70 mm | 35 mm | 45 mm | 102 mm | 25 mm | 111 x 80 mm | 9 mm | 85.9 x 60.5 mm | 60 mm | 250 kg | 1.03 g |
| 70 mm | 35 mm | 45 mm | 102 mm | 25 mm | 111 x 80 mm | 9 mm | 85.9 x 60.5 mm | 60 mm | 250 kg | 1 g |
